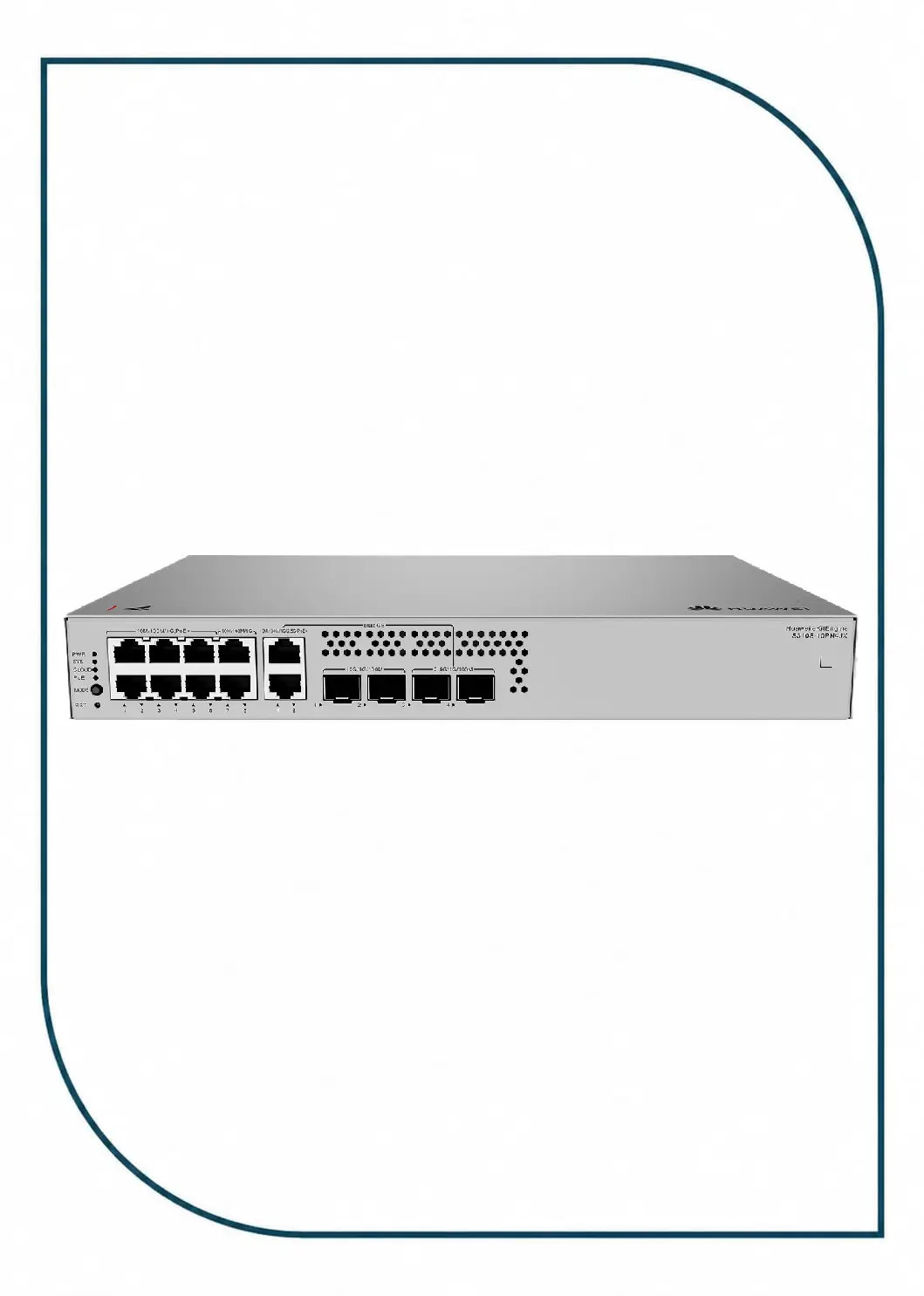

S310S-10PN4JX
- 6 x 10/100/1000BASE-T PoE+ ports
- 2 x 10/100/1000BASE-T ports
- 2 x 10M/100M/GE/2.5GE BASE-T PoE+ ports (multi-GE ports)
- 2 x 10GE SFP+ ports
- 2 x 2.5GE SFP ports
- Packet forwarding rate: 56 Mpps
- Switching capacity: 76 Gbit/s
PS-tech Shopping Event
Hurry and get discounts on all devices up to 20%
Sale_coupon_15
Available on backorder
18
People watching this product now!
-
Pick up from the ps-tech
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
-
Warranty as per product
-
Free 15-Day returns
Payment Methods:
Description
| Specification | Details |
|---|
| Model | S310S-10PN4JX |
| Device Type | L2+ Managed Ethernet Switch with PoE+ |
| Downlink Ports | – 6 × 10/100/1000BASE-T (RJ45) ports with PoE+ support – 2 × 10/100/1000BASE-T (RJ45) ports – 2 × 10M/100M/1000M/2.5GBASE-T (RJ45) ports with PoE+ support |
| Uplink Ports | – 2 × 10GE SFP+ ports – 2 × 2.5GE SFP ports |
| PoE Standard | IEEE 802.3af / 802.3at (PoE/PoE+) |
| PoE Power Budget | 128W (built-in) |
| Switching Capacity | 76 Gbps |
| Forwarding Performance | 56 Mpps |
| MAC Address Table Size | 16K entries |
| Memory (RAM) | 512 MB |
| Flash Memory | 256 MB |
| Dimensions (H × W × D) | 43.6 mm × 320 mm × 210 mm (1.72 in × 12.60 in × 8.27 in) |
| Weight (without packaging) | 2.5 kg (5.51 lb) |
| Weight (with packaging) | 3.5 kg (7.72 lb) |
| Chassis Height | 1U |
| Chassis Material | Metal |
| Power Supply | Built-in AC |
| Rated Input Voltage | AC: 100V – 240V, 50/60Hz |
| Input Voltage Range | AC: 90V – 300V, 47Hz – 63Hz |
| Max Input Current | 6A |
| Typical Power Consumption | 30W |
| Max Power Consumption (PoE Full Load) | 158W (includes 128W for PoE load) |
| Heat Dissipation (Typical) | 102.4 BTU/hour |
| Heat Dissipation (Max PoE Load) | 539.2 BTU/hour |
| Static Power Consumption | 18W |
| MTBF (Mean Time Between Failures) | 42.47 years |
| Availability | > 0.99999 |
| Operating Temperature | -5°C to +40°C (23°F to 104°F), up to 1800m altitude |
| Temperature Derating | Above 1800m, reduce max temp by 1°C per 220m increase (up to 5000m) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Operating Altitude | 0 to 5000m (0 to 16404 ft.) |
| Ingress Protection | IP20 |
| Surge Protection (Ports) | ±7 kV Common Mode |
| Surge Protection (Power Supply) | ±6 kV Differential / ±6 kV Common Mode |
| Cooling Method | Fanless, natural heat dissipation |
| Airflow Direction | Not applicable (fanless design) |
| Fan Modules | Not applicable (fanless design) |
| Redundant Power Supply (RPS) | Not supported |
| Console Port | Not supported |
| Management Port | Not supported |
| USB Port | Not supported |
| Real Time Clock (RTC) | Not supported |
| PoE Support | Supported on specific ports |
| Certifications | EMC, Safety, Manufacturing certifications |
